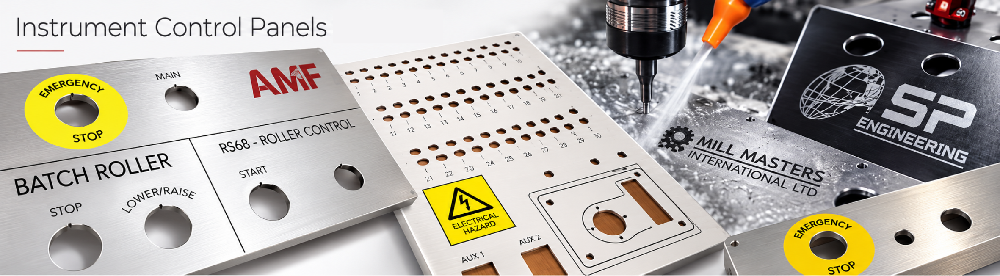

Custom Instrument & Control Panel Fascias

Precision CNC Machined, Engraved & Printed Control Panels

Identitag manufactures bespoke instrument panels, control panel fascias, rack panels and mimic panels for industrial, electrical and engineering applications.

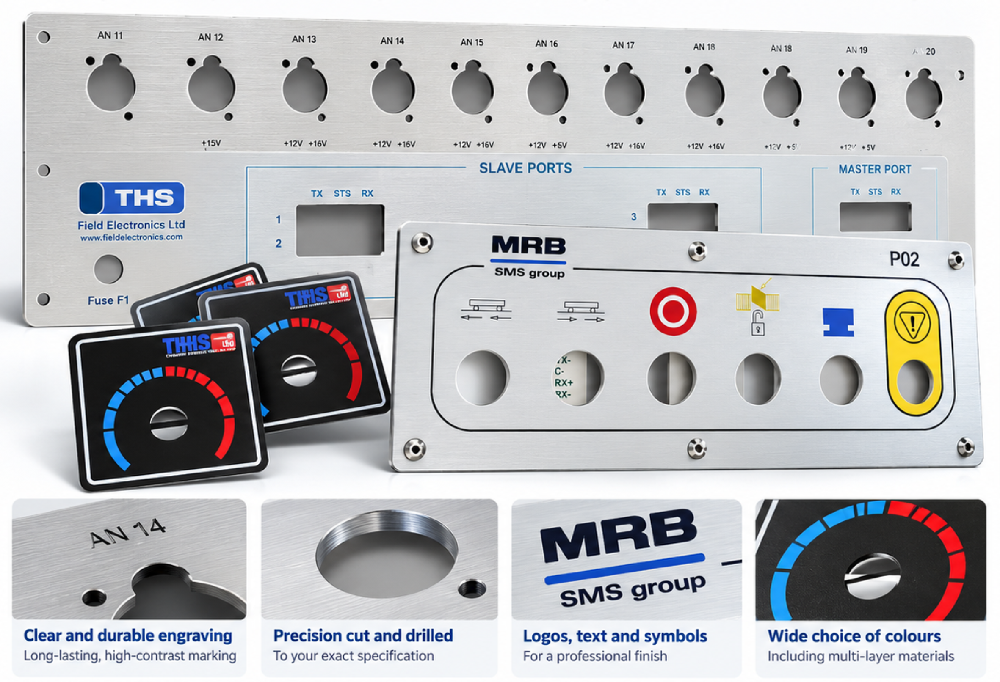

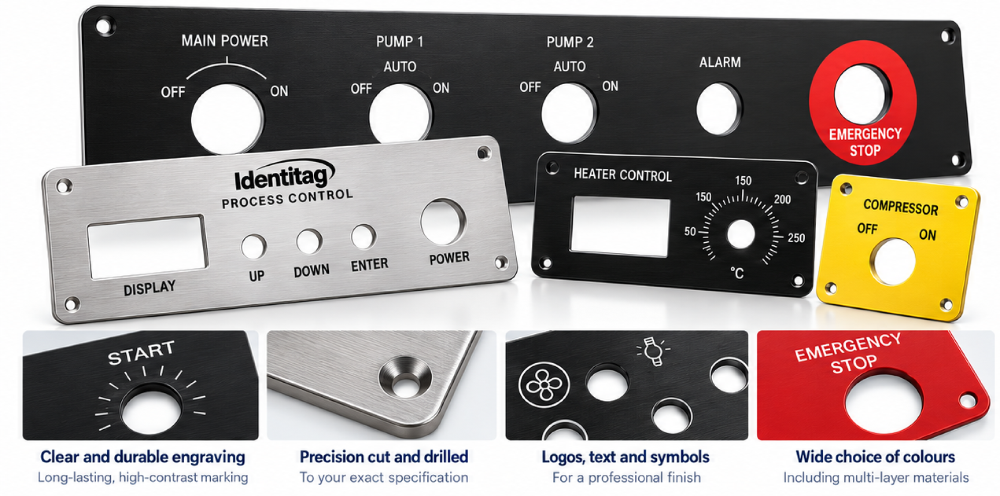

From a simple engraved switch plate to a complex machine control panel incorporating display apertures, switches, push buttons, warning symbols and operating instructions, each panel can be manufactured to your individual drawing or specification.

Using our in-house CAD/CAM, CNC machining, engraving and direct-printing equipment, we can provide prototypes, replacement panels and repeat-production quantities with consistent, professional results.

Manufactured to Your Drawing

Send us your DXF, DWG, PDF or dimensional drawing and we can manufacture the panel to suit your equipment.

Panels can incorporate:

Precision-cut holes and apertures Rectangular display and screen cut-outs Slots and profiles Countersunk holes Counterbored holes Tapped holes CNC-milled recesses and pockets Switch and push-button locations Meter and instrument apertures Engraved operating legends Scales and dial markings Company logos Symbols and diagrams Mimic diagrams Equipment references Sequential numbering

Accurate CNC machining helps ensure that switches, displays, meters, connectors and other panel-mounted components fit correctly while maintaining a clean, professional finish.

Engraving, Marking & Printing

Depending on the material and required finish, your control panel can be produced using:

Rotary Engraving
Deep, permanent engraving suitable for aluminium, stainless steel, plastics and engraving laminates.

Fibre Laser Marking
High-resolution permanent marking of suitable metals, including detailed text, serial numbers, logos and graphics.

CO₂ Laser Engraving
Ideal for many plastics, acrylics and engraving laminates.

Direct Digital Printing
Suitable where detailed graphics, multiple colours, logos, symbols or complex mimic diagrams are required.

Colour-Filled Engraving
Engraved lettering and graphics can be colour filled to provide excellent contrast and clear identification.

These manufacturing methods can also be combined on the same panel where required.

Materials Available

We manufacture instrument and control panel fascias from a wide selection of industrial materials.

Anodised Aluminium

A popular choice for machinery and instrumentation due to its professional appearance, dimensional stability and durability.

Current stocked thicknesses include:

• 1.0 mm – Silver
• 1.5 mm – Silver and Black
• 2.0 mm – Silver
• 3.0 mm – Silver and Black

Traffolyte & Engraving Laminates

Multi-layer engraving material produces permanent, high-contrast lettering and is particularly suitable for control panels, electrical panels and industrial identification.

Stocked in:

• 1.5 mm
• 3.0 mm
• Multiple colour combinations
• Brushed silver finish

Clear Polycarbonate

An excellent option for printed overlays, display panels and applications requiring transparency.

Stocked thicknesses include:

1.0 mm, 1.5 mm, 2.0 mm, 3.0 mm and 5.0 mm

316L Stainless Steel

For demanding industrial environments requiring excellent corrosion resistance and durability.

Stocked DP1 finish thicknesses include:

0.9 mm, 1.2 mm, 1.5 mm, 2.0 mm and 3.0 mm

Acrylic

Available for engraved, machined and printed panels where a clean decorative finish is required.

Stocked in a selection of thicknesses and colours.

Pre-Coated Aluminium

White pre-coated aluminium is available for printed control panels, equipment fascias and identification panels.

Stocked in:

• 1.5 mm – White RAL 9010
• 2.0 mm – White RAL 9010

Aluminium Composite

A rigid, lightweight panel material suitable for larger control and equipment panels.

Stocked in:

• 2 mm – White RAL 9010
• 3 mm – White RAL 9010
• 6 mm – White RAL 9010

The existing page lists these materials and stock thicknesses as part of Identitag's current manufacturing range.

Typical Applications

Our custom instrument and control panels are suitable for a wide variety of applications, including:

• Industrial machinery
• Machine control panels
• Electrical control cabinets
• Process control equipment
• Pump and valve control systems
• Automation systems
• Manufacturing equipment
• Test and measurement equipment
• HVAC controls
• Laboratory equipment
• Instrumentation
• Production machinery
• Replacement equipment fascias
• Mimic and schematic panels

From One-Off Panels to Production Quantities

Whether you require a single replacement fascia, a prototype for a new machine or a repeat production batch, Identitag can manufacture panels to your specification.

Because CNC machining, engraving and printing are carried out in-house, we can control the complete manufacturing process and provide consistent results from one order to the next. The current page states that these processes are undertaken in-house.

Need a Custom Control Panel?

Send us your drawing, dimensions or existing panel details and we will be pleased to provide a quotation.

Telephone: 01740 621175
Email: quotes@identitag.co.uk

If you do not have a finished CAD drawing, send us the information you have and we can discuss the best manufacturing method and material for your application.
